Insert Stacker Series
Constructed from Q195 / Q235 carbon steel, it supports three working modes: high-level stacking, flexible layout and compact storage. The unit becomes more stable under heavier loads, and it is specially designed for heavy-duty industrial warehousing scenarios.
1500Kg
Single-layer Load Capacity
3～4Layers
Recommended Stacking Layers
Q235Steel
High-quality Carbon Structural Steel
Plug-in Steel Pallet Series
One set of equipment flexibly adapts to three scenarios: unfolded use, vertical stacking and empty frame storage.

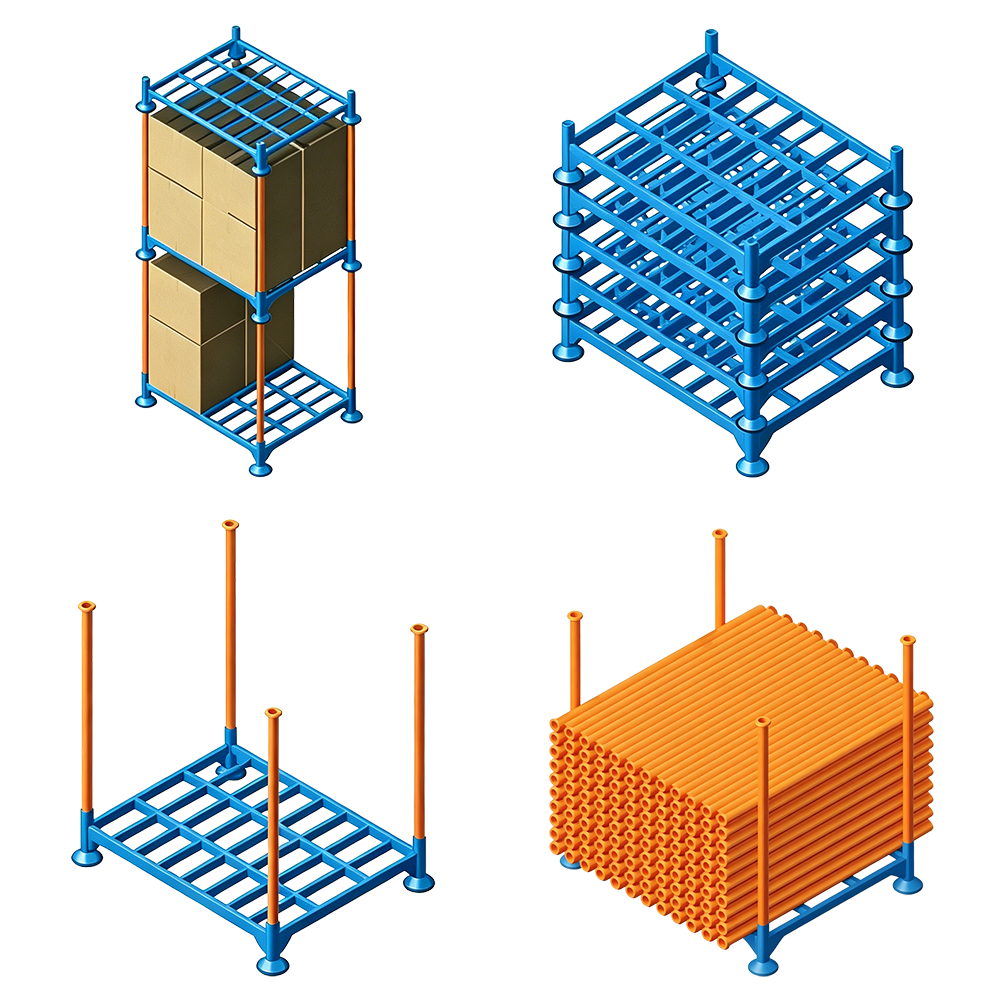

Three working modes to meet diverse application scenarios
A single unit flexibly accommodates three scenarios: unfolded operation, vertical stacking and empty frame storage.

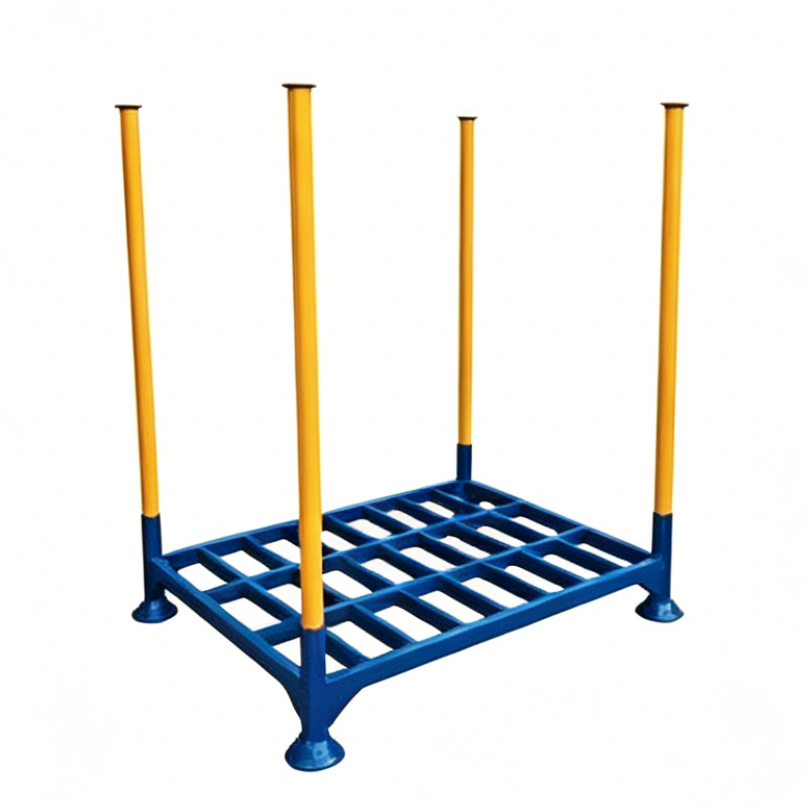

Normal Use · Goods Placement
When the rack is fully unfolded, four upright posts provide support for stable and firm placement. Ideal for daily loading and unloading of goods, the rack can be flexibly arranged in various areas.

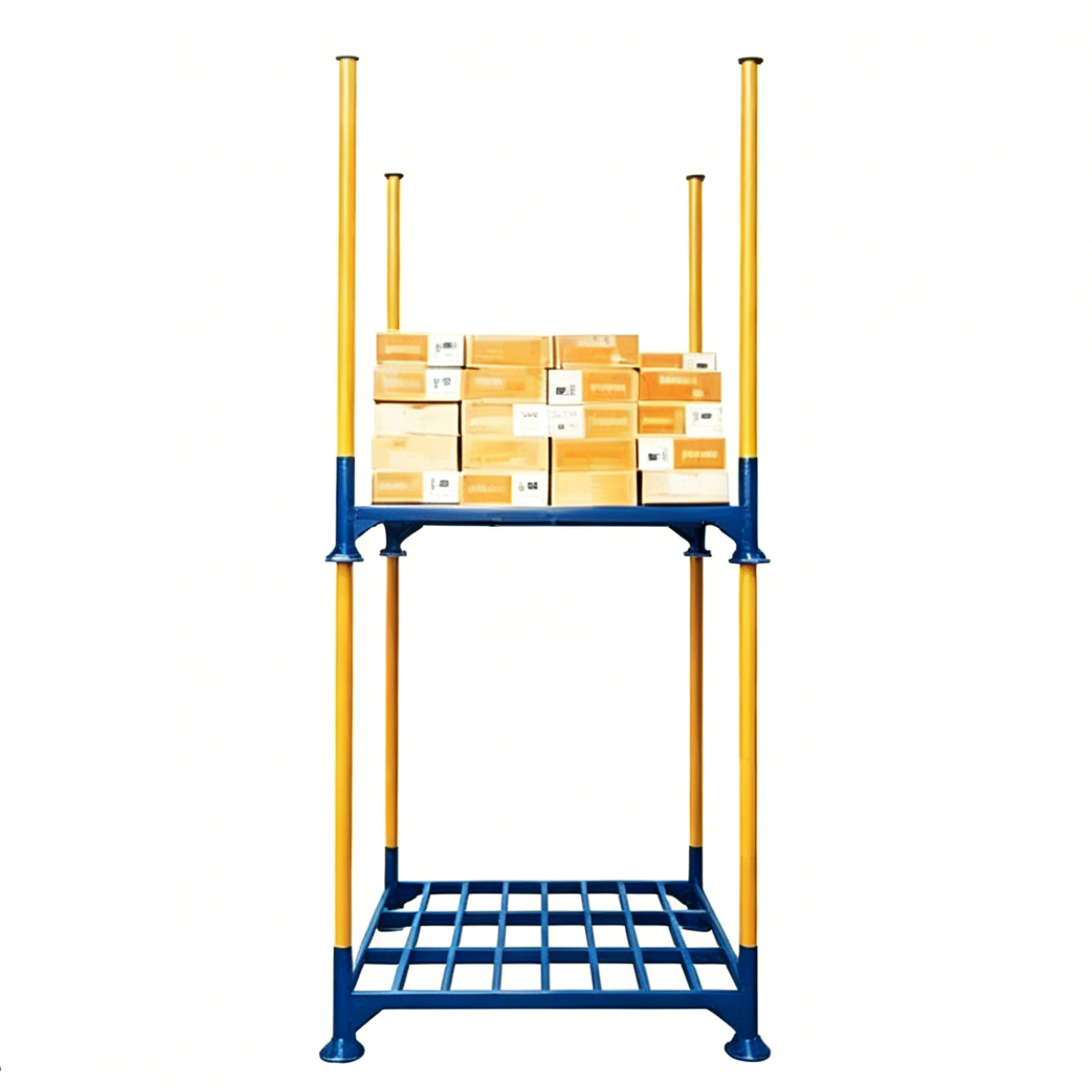

Vertical Stacking · Floor Space Saving
Multiple racks can be stacked vertically to greatly reduce floor space occupation. Heavy goods can be stored via high-position stacking, doubling the utilization rate of warehouse floor space.

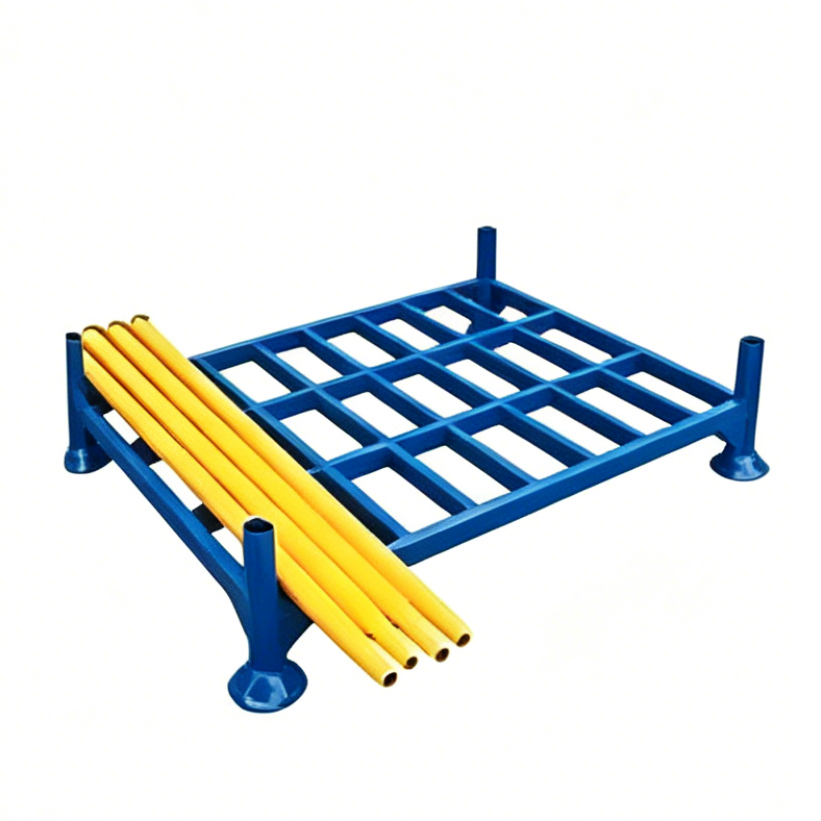

Disassemble Storage · Compact Stowage
When not in use, it can be disassembled or compactly stacked for storage to cut down space occupation. It is easy to handle and transport, bringing hassle-free warehouse management during off-peak periods.
Product Parameters of Plug-in Steel Pallets
Standard sizes plus flexible customization to meet all types of industrial warehousing demands.
Technical Parameters
NANE：
Plug-in Stacking Rack
Product Series：
Insert Stacker
Material：
Q195 / Q235 Carbon Steel
Surface Treatment：
Galvanized / Paint Coated (Optional)
Single-layer Load Capacity：
1500 kg
Recommended Stacking Height
1–4 Layers
Processing Technology
Fully Welded Reinforcement
Customization
Sizes can be customized as required.
Standard Dimensions & Specifications
长(L) × 宽(W) × 高(H)，单位：mm
1000 × 1000 × 1100
常规
1000 × 1200 × 1100
常规
1100 × 1100 × 1200
常规
1200 × 800 × 1200
常规
1200 × 1200 × 1250
常规
Leave your contact information, and our professional team will be at your service at any time.
Ready to boost your warehouse efficiency?
We specialize in R&D, design and intelligent manufacturing of logistics warehousing equipment. Adopting industrial precision craftsmanship, we supply efficient, reliable automated warehousing solutions with full-lifecycle worry-free operation support.
