折叠式堆垛架
Folding Stacking Rack
采用国标 Q195/Q235 优质碳钢，支持折叠存放、可堆垛 3-4 层。规格统一、承载力强，适用于物流、制造、冷库等多场景。
3000Kg
最大承载重量
3～4层
建议堆垛层数
5款
标准型号可选
折叠式堆垛架又称为移动式货架、布匹架，单个承载2000kg-3000kg，满载后自身可实行堆垛3-4层，需配合机动叉使用。
Arc / Nine-Leg Steel Pallet Series
6000Kg
Maximum Load Capacity
-30℃
Cold resistance temperature
5K
Standard models
1. Suitable for forklift operation for easy loading and unloading of goods. This ultra-light metal pallet series is mainly applied to multi-purpose floor storage, rack storage, as well as goods intermodal transportation and turnover. It serves as a horizontal platform device for unit load during containerization, stacking, handling and transportation.
2. Production Process: The primary raw materials are steel or galvanized steel sheets. They are formed by special equipment, with various profiles mutually supported and reinforced by rivet connections, followed by welding via CO₂ gas shielded welding.
Arc / Nine-Leg Steel Pallet Series
Standardized design enables efficient space utilization and adapts to logistics and storage demands of various scenarios.

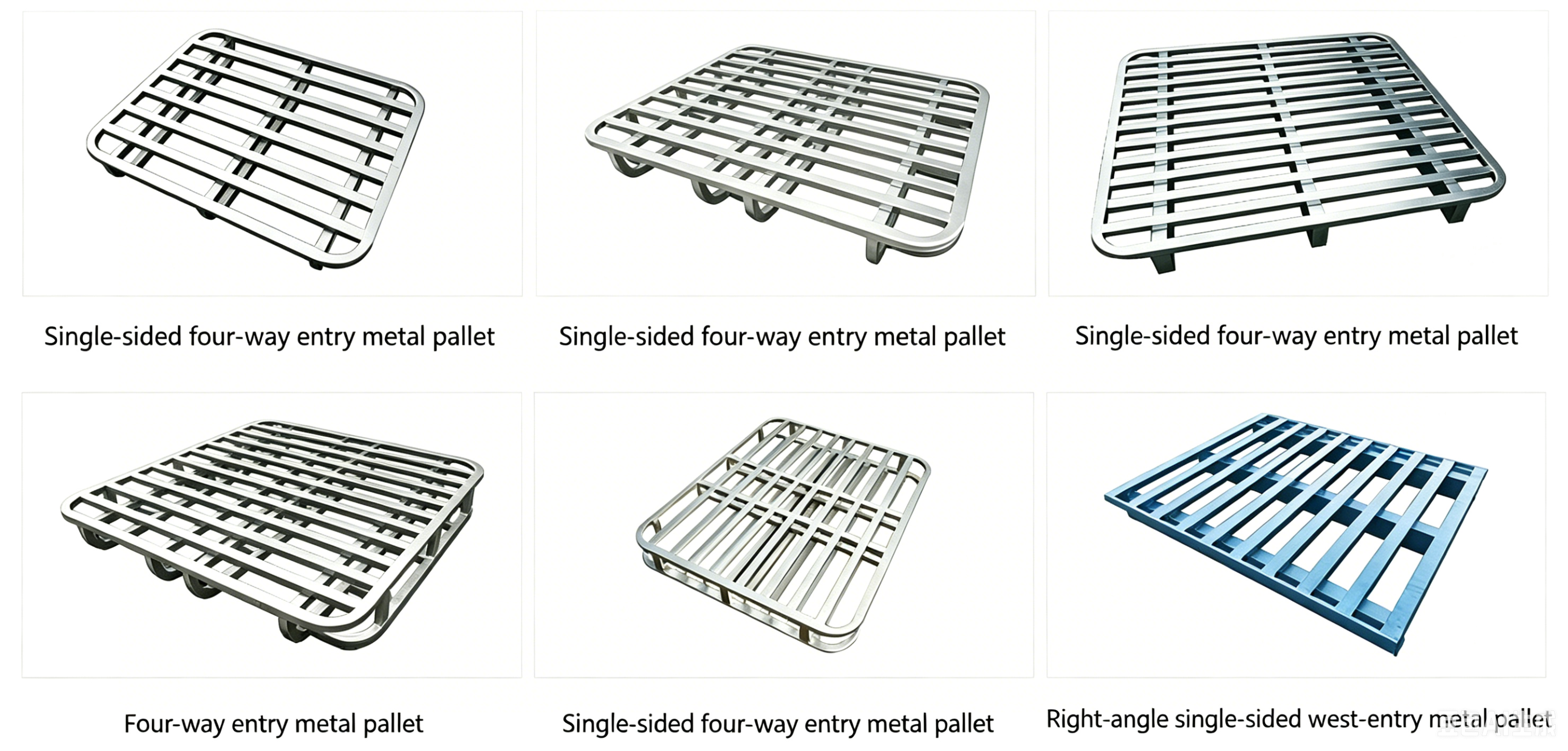

Multiple styles available to suit different scenarios
One set of equipment flexibly adapts to three scenarios: unfolded operation, vertical stacking and empty rack storage.
1
Superior Load-bearing Capacity
It boasts the strongest load-bearing capacity among all pallet types, with a maximum static load of 6,000 kg and a dynamic load ranging from 500 kg to 2,000 kg, meeting the storage requirements of heavy-duty goods.
2
100% Eco-friendly & Recyclable
Made of metal, it is 100% recyclable to avoid resource waste. No fumigation, high-temperature disinfection or anti-corrosion treatment is required for export, complying with international environmental regulations.
3
Suitable for low-temperature cold storage
With cold resistance down to -30°C, it fits cold chain and cold storage environments. Treated with moisture-proof and anti-corrosion surface coating, it remains sturdy and durable under low temperatures.
4
Moisture-proof, anti-corrosion and rust-resistant
A variety of surface treatment processes including powder coating, spray painting, electro-galvanizing and hot-dip galvanizing provide effective moisture, corrosion and rust resistance to extend service life.
5
Flexible Customization Service
Specifications, dimensions, load capacity, fork entry directions and other parameters can be customized according to customer requirements, flexibly adapting to various storage scenarios and equipment.
6
Four-way / Two-way Fork Entry
Two structural designs are available: two-way fork entry and four-way fork entry, compatible with various forklift models for more flexible and convenient handling operations.
Core Product Advantages
Standardized design, efficient space utilization, suitable for logistics and storage needs of various scenarios
Arc / Nine-Leg Steel Pallets
Standard sizes plus flexible customization to meet all types of industrial storage requirements
Technical Parameters
Product Name
Steel Pallet Series
Product Series
Stacking Truss Series
Material
High-quality Q235 cold-rolled steel
Method
Powder Coating / Spray Painting / Electro-galvanizing / Hot-dip Galvanizing
Single-layer Load Capacity
500 - 6000 kg
Stacking Layers
-
Fork Entry Direction
Two-way Fork Entry / Four-way Fork Entry
Customization Service
Dimensions can be customized as required
Standard Dimensions & Specifications
长(L) × 宽(W) × 高(H)，单位：mm
1200 × 800 × 150（静载：1000 kg 自重：24kg）
常规
1200 × 1000 × 150（静载：2000 kg 自重：35kg）
常规
1200 × 1200 × 150（静载：2000 kg 自重：45kg）
常规
1200 × 1200 × 150（静载：2500 kg 自重：48kg）
常规
1100 × 1100 × 150（静载：2000 kg 自重：35kg）
常规
