折叠式堆垛架
Folding Stacking Rack
采用国标 Q195/Q235 优质碳钢，支持折叠存放、可堆垛 3-4 层。规格统一、承载力强，适用于物流、制造、冷库等多场景。
3000Kg
最大承载重量
3～4层
建议堆垛层数
5款
标准型号可选
折叠式堆垛架又称为移动式货架、布匹架，单个承载2000kg-3000kg，满载后自身可实行堆垛3-4层，需配合机动叉使用。
Product Parameters of Foldable Stacking Racks
Standardized dimensions plus flexible customization to meet various industrial warehousing demands
Technical Parameters
NANE：
Product Series：
Insert Stacker
Material：
Q195 / Q235 Carbon Steel
Fully Welded Structure
Surface Treatment：
Galvanized / Paint Coated (Optional)
Powder Coating / Galvanized
Single-layer Load Capacity：
1500 kg
600-1000 kg
Recommended Stacking Height
1–4 Layers
1-5Layer
Processing Technology
Fully Welded Reinforcement
Two-way fork entry / Four-way fork entry
Customization
Sizes can be customized as required.
Standard Dimensions & Specifications
长(L) × 宽(W) × 高(H)，单位：mm
1200×1100×1500（静载：600～1000 kg 堆叠：5层）
NL-GD1211
1250×1200×1500（静载：600～1000 kg 堆叠：5层）
NL-GD1212
1250×1400×1500（静载：600～1000 kg 堆叠：5层）
NL-GD1213
Leave your contact information, and our professional team will be at your service at any time.
Ready to boost your warehouse efficiency?
Smart Frame Series
Highly modular intelligent storage racks support stacking up to 5 layers. Accessories such as wire mesh panels, guardrails and shelf boards can be flexibly configured according to storage requirements. The fully welded structure is sturdy and durable, greatly improving warehouse space utilization.
1000Kg
Single-layer load capacity
5Layes
Maximum Stacking Layers
5K
Standard models available
Smart Frame Series
Standardized design, efficient space utilization, suitable for logistics and storage needs of multiple scenarios
Multiple styles to meet different scenarios
One set of equipment flexibly adapts to three scenarios: unfolded use, vertical stacking and empty rack storage.

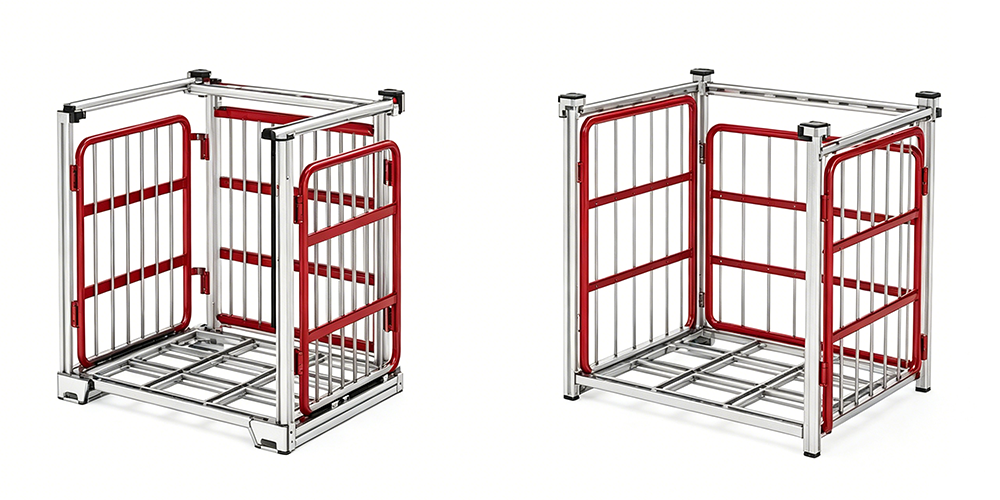

Detachable wire mesh panels: can also be installed on the front side when necessary to prevent small items from spilling when the stackable rack tilts.

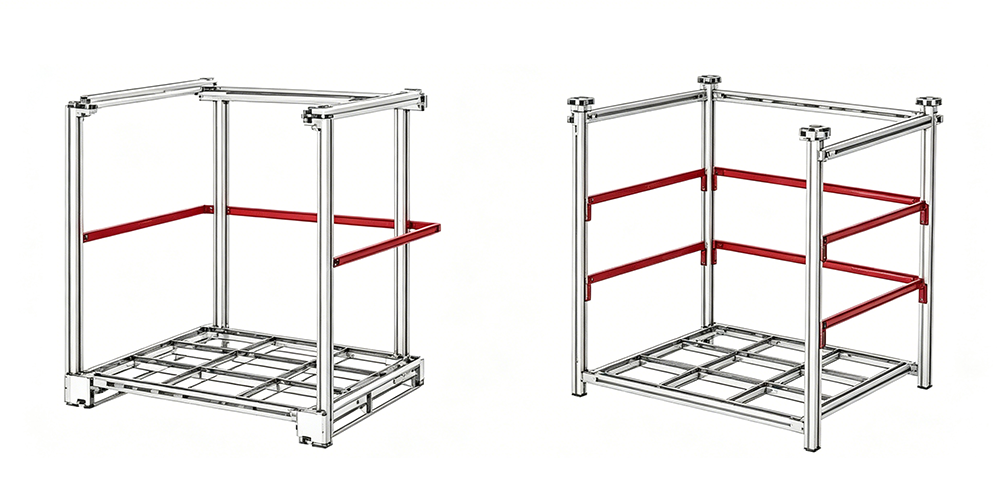

Detachable middle guardrails: one layer, two layers or multiple layers can be equipped as needed to prevent goods from tilting and spilling.
Detachable middle support bars: They protect goods from tilting and falling out.

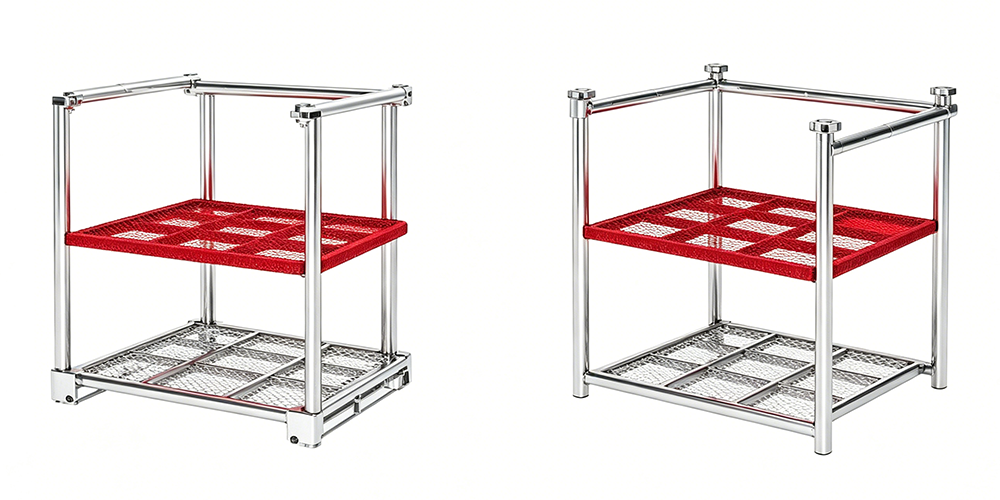

Detachable middle pallets: They divide storage space inside one stackable rack, protect goods from damage caused by extrusion and facilitate inventory management.
Fork guide grooves: They position the entry direction of forklift forks to avoid lateral deviation, maintain center of gravity balance, prevent sliding when the forklift makes sharp turns, and ensure operational safety.

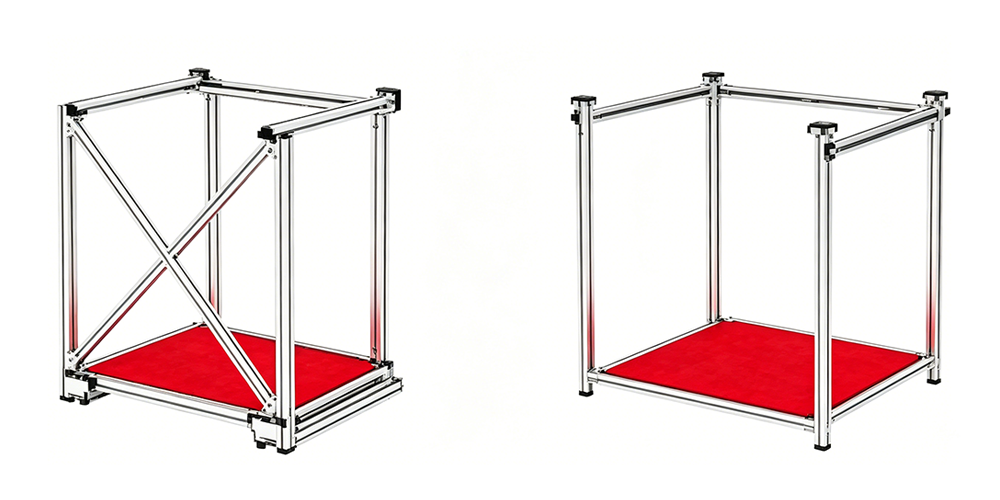

Detachable base plates: They prevent small goods, bagged products and other items from spilling or deforming.
1
Unified Specification Management
Fixed capacity and standardized design facilitate warehouse inventory counting, realize standardized logistics management and reduce inventory counting errors.
2
Foldable for Storage
Empty racks can be folded for compact storage with minimal space occupation. They greatly cut down storage area when idle and boost warehouse space utilization rate.
3
Stackable up to 3–4 layers
The racks themselves can be stacked 3 to 4 layers high to fully utilize high-level warehouse space, with a maximum single-layer load capacity of 1.5 tons for stable and reliable performance.
4
High load capacity

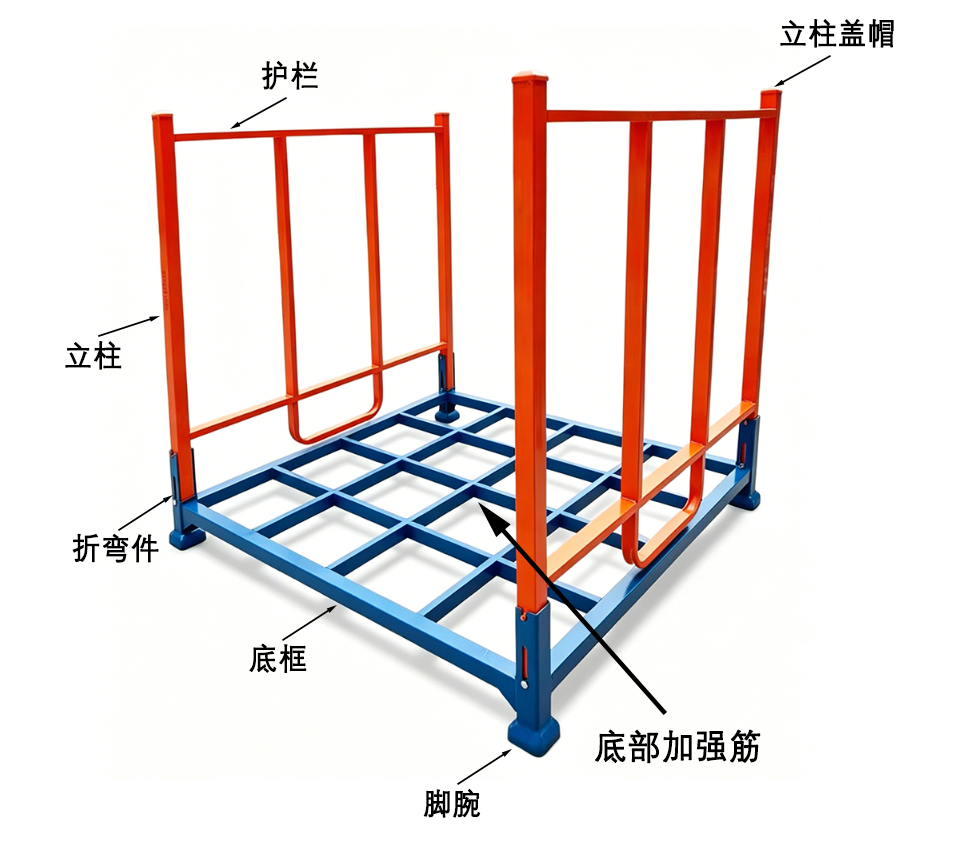

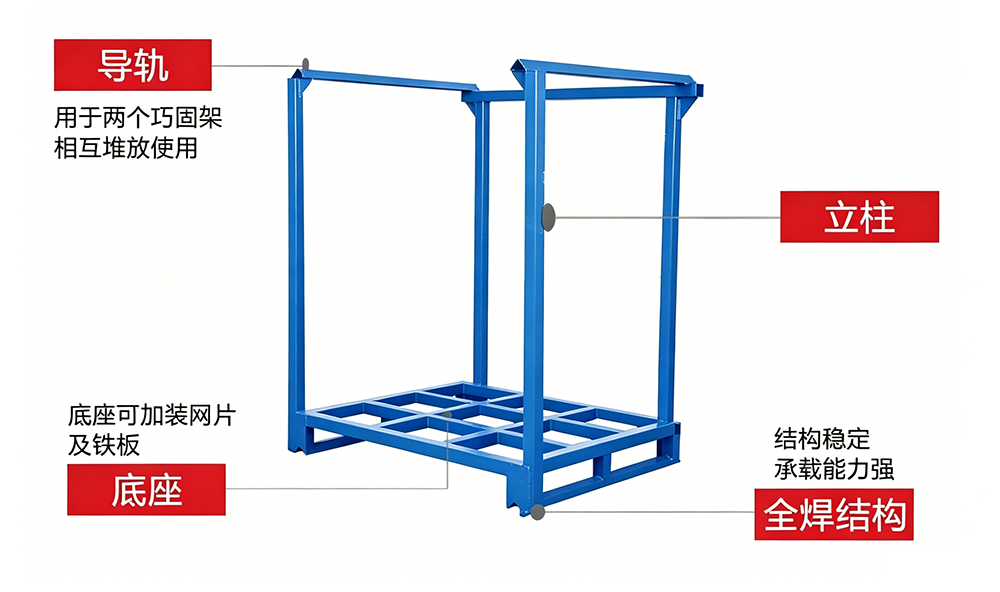

Constructed from high-quality Q195/Q235 carbon steel, it features a frame combined with square tubes, angle steel, steel plates and round pipes, delivering large load capacity and flexible application.
5
Full-process coverage
Suitable for full-chain logistics processes including transportation, handling, loading/unloading and storage. Multi-purpose rack reduces equipment investment.
6
Durable surface treatment
Double surface treatment: pickling and phosphating plus electrostatic powder coating or galvanization, anti-rust and anti-corrosion, suitable for humid environments such as cold storage.
Core Product Advantages
Standardized design with efficient space utilization, ideal for logistics and warehousing requirements in various scenarios.
We specialize in R&D, design and intelligent manufacturing of logistics warehousing equipment. Adopting industrial precision craftsmanship, we supply efficient, reliable automated warehousing solutions with full-lifecycle worry-free operation support.
